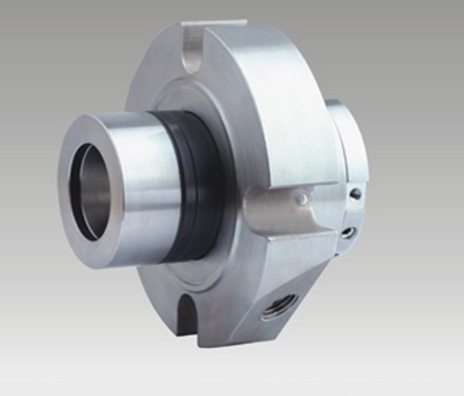

The HZCartex-SN series produced by Bian Anbu can completely replace the Cartex series produced by Bergmann, Germany. It is mainly used in petrochemical process pumps and stirrers, and is widely used in nuclear power, chemical industry and pharmaceutical industry.
Seal type: single end face, balanced type, arbitrary rotation, set type, spring static type
Features: Good compensation, can adapt to the instantaneous change of system pressure working conditions, in line with API610, API682 standards.
Parameters:
Temperature: -50 --204ºC
Speed: 23m/s
Pressure: 20 bar
Standard size: 25-100mm or 1 "-4.00".
Material:
Stator and stator ring: carbon graphite, silicon carbide, tungsten carbide.
Auxiliary seals: NBR, Viton, EPDM, Kalrez.
Springs and Structures: 304,316, HAste.c
Advantages:
Standardized ideal seal.
General purpose, applicable to replace the original sealing or retrofitting.
No need to modify the size of the seal chamber (centrifugal pump), the radial mounting height is small.
O-rings do not damage the shaft.
Extend service life.
Avoid installation failures and be cost effective.
The assembly process will not be damaged by dust entry.
Pre-assembled modules for easy and straightforward installation (reduced downtime)
It can be customized according to the pump design.
Provide customer-specific versions.
Recommended Application Industry
The process industry
The petrochemical industry
The chemical industry
The pharmaceutical industry
Power plant technology
Pulp and paper industry
Water and wastewater treatment technology
mining
Food and beverage industry
The sugar industry
