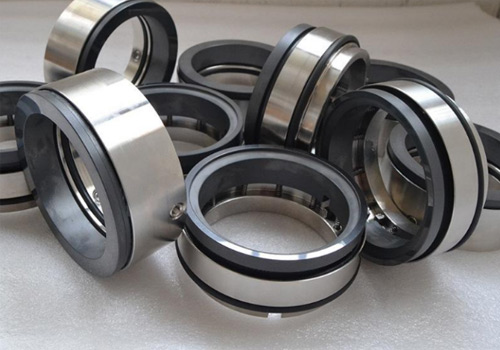

HRN mechanical seal is a static structure seal, multi-spring structure, mainly suitable for sewage, corrosive, granular medium working conditions, in sewage treatment and chemical industry has a wide range of applications.
Features: Single end face, balanced, independent rotation direction, fixed spring, double series seal, back to back.
Working parameters
Rules: 18 ~ 100 mm
Pressure: 2.5 Mpa or less
The temperature: - 40-220 ℃
Wire speed: ≤20m/s
Axial channeling momentum: ±1.5mm
Material combination
Sealing end face: graphite, silicon carbide, tungsten carbide, alumina
Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene rubber, silicone rubber
Metal component: SUS304, SUS316L
The product description
Single face
balanced
Arbitrary rotation
The spring is isolated from the medium
Comply with EN12756(DIN24960) standards
In the development and design of any product, we follow the principle of installation size standardization. That is, the installation ruler of this type of mechanical seal is in accordance with international and domestic (API610, API682, DIN24960, ISO3069, GB6556).
